200W Power Rating Wire Binding Machine YH-200W for Automatic Wire Winding and Spooling

Name: 200W Power Rating Wire Binding Machine YH200W for Automatic Wire Winding and Spooling
Brand: Yihan
Price: 350.00 USD

Place of Origin : Guangdong, China

Brand Name : Yihan

Model Number : YH-200W

Usage : WINDING

Name : Winding Machine

Power : AC220V 50HZ /60HZ

Power Rating : 200W

Winding speed : 1-10 coils/SEC(can be adjusted)

Around the circle diameter : 50-200mm

Winding pitch : 100-200mm

Spool frame height : 200mm

Net Weight : 35kg

Size : 485*435*340mm

Warranty : 12 Months

Packaging Details : Wooden Package

Price : $350.00/sets 1-2 sets

MOQ : 1 set

Contact Now

200W Power Rating Wire Binding Machine YH-200W for Automatic Wire Winding and Spooling

YH-200W DC brushless motor type semi-automatic winding machine

FEATURE:

1.This machine is suitable for AC power cord, DC power cord,USB cable, sheathed cable andHDMI high-definition cable and other types of transmission lines using encapsulated core twist tied into bundle, can also be used to tape and other sealing plastic bag cores.

2.This machine can reduce employee fatigue strength, improve working efficiency, save cable ties and so on.

3.Employees simply put the wires on the port it will automatically winding,then putting these wires around the Norse mouth,the machine will automatically norse.The machine can set binding wire length and number of laps,count the yield .

4.The machine adopts PLC control program , text display for parameter setting, easy to operate.Adjusting space, replacement of fixtures is very convenient, ("8" -shaped tying, tying round universal,large range of bundled,widely used.)

5.Low cost and high efficient

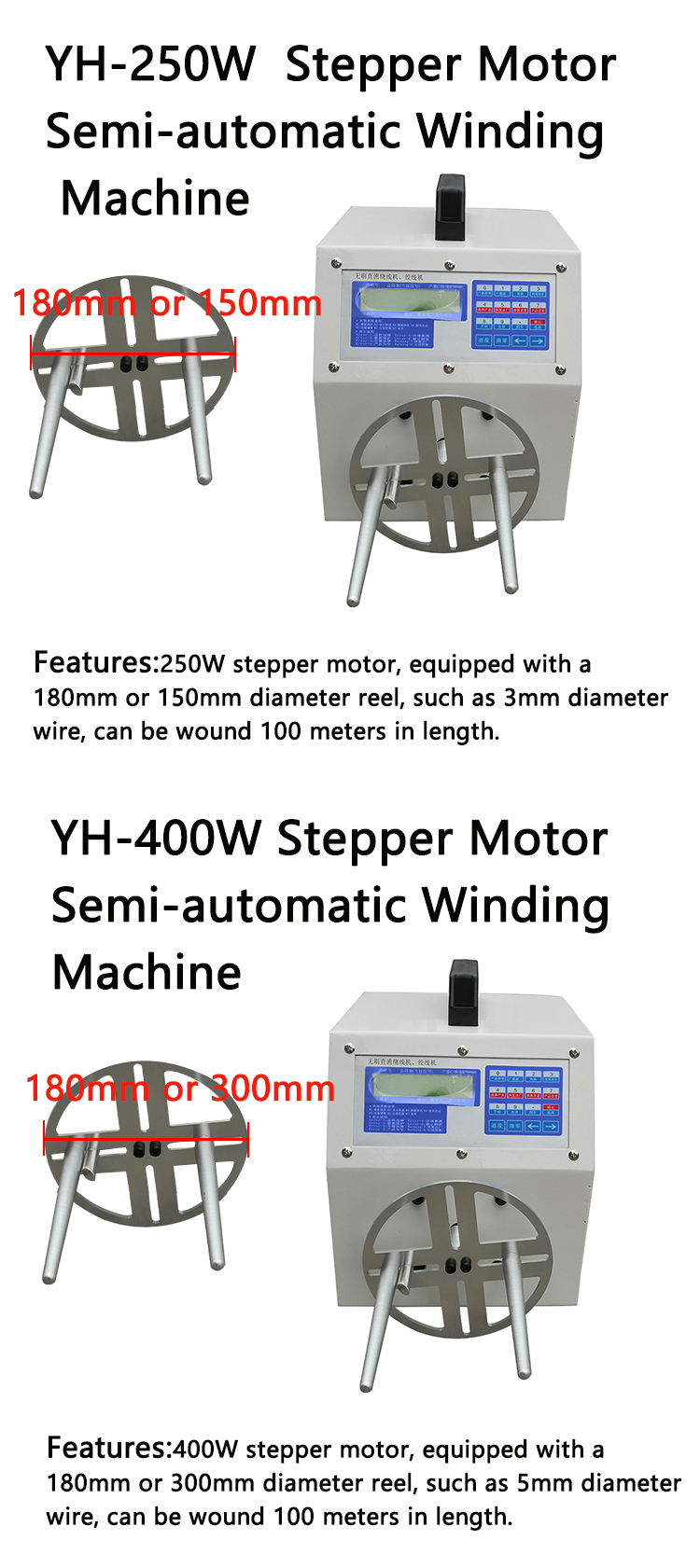

Model	YH-200W (DC brushless motor)	YH-400W (DC brushless motor)	YH-250W (Stepper motor)
Winding speed	Adjustable	Adjustable	Adjustable
Tying speed	0.6s each time	0.6s each time	0.6s each time
Winding Disc Diameter (customized available)	350mm	350mm	400mm
Weight	40kg	42kg	50kg
Dimension	500300350mm	550300500mm	5503000350mm
